This function converts raster values into a binary format where positive values are set to 1 (presence) and zeros remain 0 (absence). Additionally, it allows for the conversion of NA values to 0, and/or 0 values to NA, based on the user's choice.

Usage

raster_to_pres_abs(raster = NULL, na_to_0 = TRUE, zero_to_na = FALSE)

Arguments

raster

The input raster map. It must be of class PackedSpatRaster, RasterLayer, or SpatRaster. This parameter cannot be NULL.

na_to_0

A logical value indicating whether NA values should be converted to 0. Defaults to TRUE.

zero_to_na

A logical value indicating whether 0 values should be converted to NA. Defaults to FALSE.

Value

A raster map where values have been converted according to the specified parameters. This object is of the same class as the input object.

Author

Ahmed El-Gabbas

Examples

ecokit::load_packages(dplyr, raster, ggplot2, tidyterra)

# example data
r <- r2 <- raster::raster(
  system.file("external/test.grd", package = "raster"))
# change some values to 0
r[5000:6000] <- 0
r <- raster::mask(r, r2)

ggplot2::ggplot() +
  tidyterra::geom_spatraster(data = terra::rast(r), maxcell = Inf) +
  ggplot2::theme_minimal() +
  ggplot2::theme(axis.text = ggplot2::element_blank())


# ------------------------------------------------------

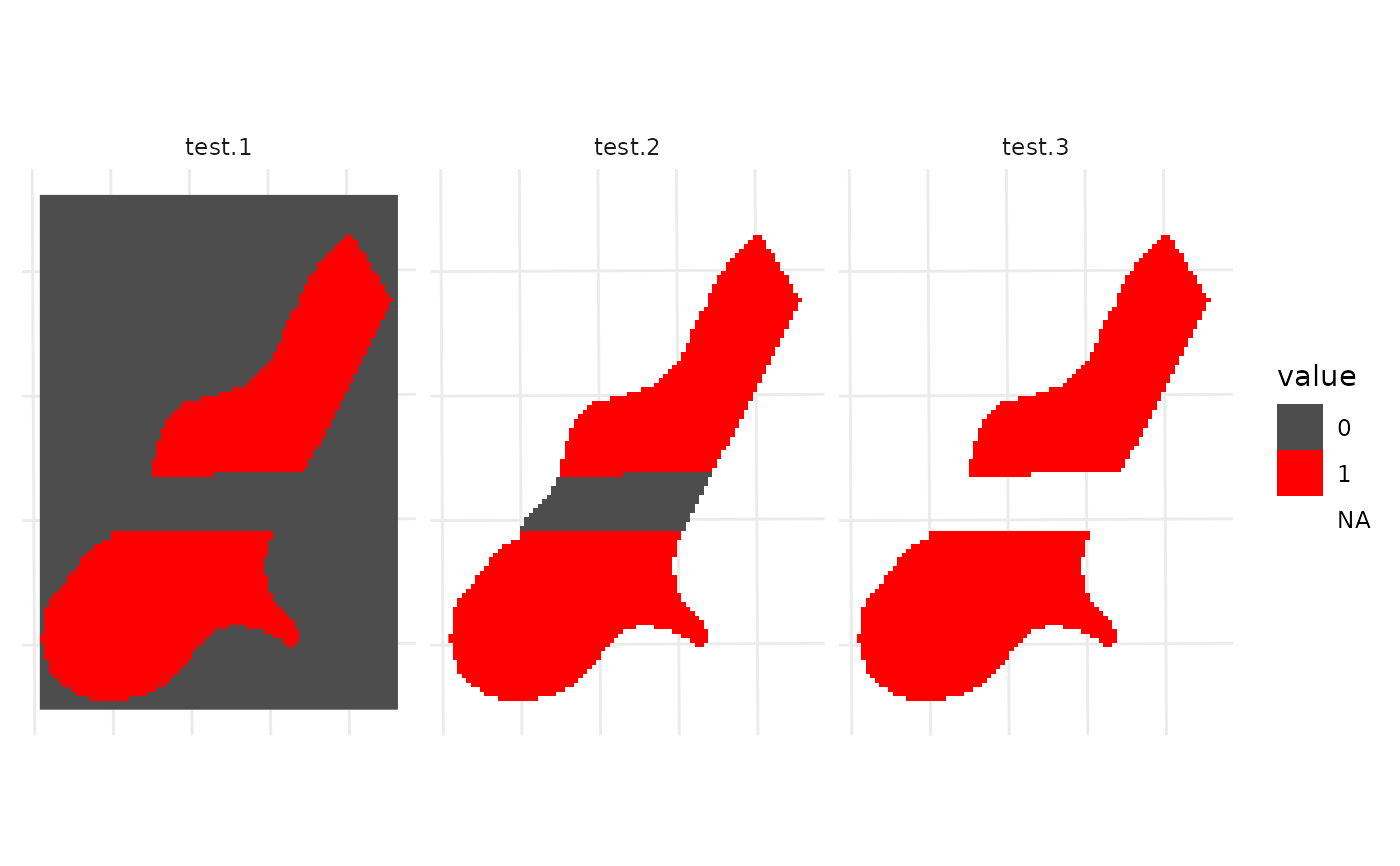

r_2 <- raster::stack(
  # 1) zero remains zero; NA becomes zero
  raster_to_pres_abs(raster = r),
  # 2) NA is kept as NA
  raster_to_pres_abs(raster = r, na_to_0 = FALSE),
  # 3) 0 replaced with NA
  raster_to_pres_abs(raster = raster_to_pres_abs(r), zero_to_na = TRUE))

ggplot2::ggplot() +
  tidyterra::geom_spatraster(
    data = terra::as.factor(terra::rast(r_2)), maxcell = Inf) +
  ggplot2::facet_wrap(~lyr) +
  ggplot2::scale_fill_manual(values = c("grey30", "red", "blue"),
    na.value = "transparent") +
  ggplot2::theme_minimal() +
  ggplot2::theme(axis.text = ggplot2::element_blank())
